Abstract QoS Description. More...

#include <abstractqosdescription.h>

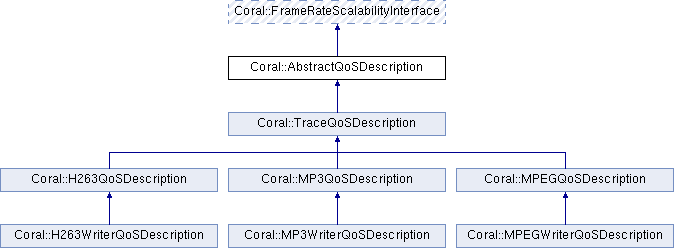

Inheritance diagram for Coral::AbstractQoSDescription:

Public Member Functions
	AbstractQoSDescription ()
virtual	~AbstractQoSDescription ()
void	initDescription (const double frameRate)
virtual void	updateDescription (const cardinal pktHeaderSize, const cardinal pktMaxSize)=0
double	getFrameRate () const
double	setFrameRate (const double frameRate)
double	getNextFrameRate () const
double	getPrevFrameRate () const
double	getFrameRateScaleFactor () const
card64	getMinBandwidth () const
card64	getMaxBandwidth () const
card64	getPosition () const
void	setPosition (const card64 position)
virtual cardinal	getLayers () const =0
virtual AbstractLayerDescription *	getLayer (const cardinal layer) const =0
double	getResources (ResourceUtilizationPoint &rup) const
double	setResources (const ResourceUtilizationPoint &rup)
virtual double	calculateUtilizationForLayerBandwidths (const double frameRate, const cardinal layers, const card64 *bandwidth) const
virtual cardinal	getPrecomputedResourceUtilizationList (ResourceUtilizationPoint *rup, const card64 bwThreshold, const double utThreshold, const cardinal maxPoints) const =0
virtual cardinal	calculateResourceUtilizationList (ResourceUtilizationPoint *rup, const card64 bwThreshold, const double utThreshold, const cardinal maxPoints) const
double	calculateMaxUtilizationForBandwidth (const card64 totalBandwidth, ResourceUtilizationPoint &rup) const
virtual void	calculateMaxUtilizationForBandwidthArray (const card64 totalBandwidthArray, ResourceUtilizationPoint rupArray, const cardinal points) const
double	getWantedUtilization () const
void	setWantedUtilization (const double utilization)
card64	getMinWantedBandwidth () const
card64	getMaxWantedBandwidth () const
void	setMinWantedBandwidth (const card64 bandwidth)
void	setMaxWantedBandwidth (const card64 bandwidth)
int8	getStreamPriority () const
void	setStreamPriority (const int8 priority)
int8	getSessionPriority () const
void	setSessionPriority (const int8 priority)
Protected Attributes
double	WantedUtilization
card64	MinWantedBandwidth
card64	MaxWantedBandwidth
double	FrameRate
card64	Position
cardinal	PktHeaderSize
cardinal	PktMaxSize
int8	StreamPriority
int8	SessionPriority
Private Member Functions
void	doResourceUtilizationIteration (ResourceUtilizationPoint rup, const card64 bwThreshold, const double utThreshold, double utilizationCache, card64 *bandwidthCache, const cardinal maxPoints, const cardinal maxCachePoints, const cardinal start, const cardinal end, const card64 startBandwidth, const card64 endBandwidth, const cardinal level, const cardinal maxLevel, cardinal &count) const
void	calculateBandwidthInfo (const cardinal layer, BandwidthInfo &bandwidthInfo) const

Detailed Description

Abstract QoS Description.

This class contains a stream's QoS requirements.

Author:: Thomas Dreibholz

Version:: 1.0

Constructor & Destructor Documentation

Coral::AbstractQoSDescription::AbstractQoSDescription ( )

Constructor.

Coral::AbstractQoSDescription::~AbstractQoSDescription ( ) [virtual]

Destructor.

Member Function Documentation

void Coral::AbstractQoSDescription::calculateBandwidthInfo	(	const cardinal	layer,
		BandwidthInfo &	bandwidthInfo
	)		const `[private]`

double Coral::AbstractQoSDescription::calculateMaxUtilizationForBandwidth	(	const card64	totalBandwidth,
		ResourceUtilizationPoint &	rup
	)		const `[inline]`

Calculate maximum utilization for given bandwidth. This is the single-point version of calculateMaxUtilizationForBandwidthArray().

Parameters:

totalBandwidth	Total bandwidth.
rup	ResourceUtilizationPoint reference to store result.

Returns:: Utilization.

See also:: calculateMaxUtilizationForBandwidthArray

void Coral::AbstractQoSDescription::calculateMaxUtilizationForBandwidthArray	(	const card64 *	totalBandwidthArray,
		ResourceUtilizationPoint *	rupArray,
		const cardinal	points
	)		const `[virtual]`

Calculate maximum utilizations for given bandwidth array.

Parameters:

totalBandwidthArray	Total bandwidth array.
rupArray	ResourceUtilizationPoint array to store results.
points	Number of points in arrays.

Reimplemented in Coral::H263QoSDescription, Coral::MP3QoSDescription, and Coral::MPEGQoSDescription.

cardinal Coral::AbstractQoSDescription::calculateResourceUtilizationList	(	ResourceUtilizationPoint *	rup,
		const card64	bwThreshold,
		const double	utThreshold,
		const cardinal	maxPoints
	)		const `[virtual]`

Calculate resource utilization list. To use a precomputed list, call getPrecomputedResourceUtilizationList().

Parameters:

rup	ResourceUtilizationPoint array capable of storing maxPoints entries.
bwThreshold	Bandwidth threshold.
utThreshold	Utilization threshold.
maxPoints	Maximum number of ResourceUtilizationPoint to generate.

See also:: getPrecomputedResourceUtilizationList

double Coral::AbstractQoSDescription::calculateUtilizationForLayerBandwidths	(	const double	frameRate,
		const cardinal	layers,
		const card64 *	bandwidth
	)		const `[virtual]`

Calculate utilization for given frame rate and layers bandwidths.

Parameters:

frameRate	Frame rate.
layers	Number of layers.
bandwidth	Bandwidth array with entry for each layer.

Returns:: Utilization.

Reimplemented in Coral::TraceQoSDescription.

void Coral::AbstractQoSDescription::doResourceUtilizationIteration	(	ResourceUtilizationPoint *	rup,
		const card64	bwThreshold,
		const double	utThreshold,
		double *	utilizationCache,
		card64 *	bandwidthCache,
		const cardinal	maxPoints,
		const cardinal	maxCachePoints,
		const cardinal	start,
		const cardinal	end,
		const card64	startBandwidth,
		const card64	endBandwidth,
		const cardinal	level,
		const cardinal	maxLevel,
		cardinal &	count
	)		const `[private]`

double Coral::AbstractQoSDescription::getFrameRate ( ) const [inline]

Get frame rate.

Returns:: Frame rate.

double Coral::AbstractQoSDescription::getFrameRateScaleFactor ( ) const [inline]

Get frame rate scale factor: (frameRate - MinFrameRate) / (MaxFrameRate - MinFrameRate).

Returns:: Frame rate scale factor (out of [0,1]).

virtual AbstractLayerDescription* Coral::AbstractQoSDescription::getLayer ( const cardinal layer ) const [pure virtual]

Get layer.

Parameters:

layer Layer number.

Returns:: Layer.

Implemented in Coral::TraceQoSDescription.

virtual cardinal Coral::AbstractQoSDescription::getLayers ( ) const [pure virtual]

Get number of layers.

Returns:: Number of layers.

Implemented in Coral::TraceQoSDescription.

card64 Coral::AbstractQoSDescription::getMaxBandwidth ( ) const

Get maximum required total bandwidth.

Returns:: Maximum total bandwidth.

card64 Coral::AbstractQoSDescription::getMaxWantedBandwidth ( ) const

Get maximum wanted bandwidth.

Returns:: Maximum wanted bandwidth.

card64 Coral::AbstractQoSDescription::getMinBandwidth ( ) const

Get minimum required total bandwidth.

Returns:: Minimum total bandwidth.

card64 Coral::AbstractQoSDescription::getMinWantedBandwidth ( ) const

Get minimum wanted bandwidth.

Returns:: Minimum wanted bandwidth.

double Coral::AbstractQoSDescription::getNextFrameRate ( ) const [inline]

Get next higher frame rate.

Returns:: Frame rate.

card64 Coral::AbstractQoSDescription::getPosition ( ) const [inline]

Get position.

Returns:: Position.

virtual cardinal Coral::AbstractQoSDescription::getPrecomputedResourceUtilizationList	(	ResourceUtilizationPoint *	rup,
		const card64	bwThreshold,
		const double	utThreshold,
		const cardinal	maxPoints
	)		const `[pure virtual]`

Get precomputed resource utilization list. This method tries to use a precomputed list instead of calculating all points like calculateResourceUtilizationList().

Parameters:

rup	ResourceUtilizationPoint array capable of storing maxPoints entries.
bwThreshold	Bandwidth threshold.
utThreshold	Utilization threshold.
maxPoints	Maximum number of ResourceUtilizationPoint to generate.

See also:: calculateResourceUtilizationList

Implemented in Coral::TraceQoSDescription.

double Coral::AbstractQoSDescription::getPrevFrameRate ( ) const [inline]

Get next lower frame rate.

Returns:: Frame rate.

double Coral::AbstractQoSDescription::getResources ( ResourceUtilizationPoint & rup ) const

Get resources.

Parameters:

rup	ResourceUtilizationPoint reference to store resources.

Returns:: Utilization.

int8 Coral::AbstractQoSDescription::getSessionPriority ( ) const [inline]

Get session priority.

Returns:: Session priority.

int8 Coral::AbstractQoSDescription::getStreamPriority ( ) const [inline]

Get stream priority.

Returns:: Stream priority.

double Coral::AbstractQoSDescription::getWantedUtilization ( ) const [inline]

Get wanted utilization.

Returns:: Wanted utilization.

void Coral::AbstractQoSDescription::initDescription ( const double frameRate ) [inline]

Initialize description.

Parameters:

frameRate Frame rate.

double Coral::AbstractQoSDescription::setFrameRate ( const double frameRate ) [inline]

Set frame rate.

Parameters:

frameRate Frame rate.

Returns:: Frame rate set.

void Coral::AbstractQoSDescription::setMaxWantedBandwidth ( const card64 bandwidth )

Set maximum wanted bandwidth.

Parameters:

wanted bandwidth Maximum wanted bandwidth.

void Coral::AbstractQoSDescription::setMinWantedBandwidth ( const card64 bandwidth )

Set minimum wanted bandwidth.

Parameters:

wanted bandwidth Minimum wanted bandwidth.

void Coral::AbstractQoSDescription::setPosition ( const card64 position ) [inline]

Set position.

Parameters:

position Position.

double Coral::AbstractQoSDescription::setResources ( const ResourceUtilizationPoint & rup )

Set resources.

Parameters:

rup	ResourceUtilizationPoint reference containing resources.

Returns:: Utilization.

void Coral::AbstractQoSDescription::setSessionPriority ( const int8 priority ) [inline]

Set session priority.

Parameters:

priority Session priority.

void Coral::AbstractQoSDescription::setStreamPriority ( const int8 priority ) [inline]

Set stream priority.

Parameters:

priority Stream priority.

void Coral::AbstractQoSDescription::setWantedUtilization ( const double utilization ) [inline]

Set wanted utilization.

Parameters:

utilization Wanted utilization.

virtual void Coral::AbstractQoSDescription::updateDescription	(	const cardinal	pktHeaderSize,
		const cardinal	pktMaxSize
	)		`[pure virtual]`

Update description.

Parameters:

pktHeaderSize	Packet header size.
pktMaxSize	Maximum packet size.

Implemented in Coral::TraceQoSDescription.

Member Data Documentation

double Coral::AbstractQoSDescription::FrameRate [protected]

Reimplemented in Coral::TraceQoSDescription.

card64 Coral::AbstractQoSDescription::MaxWantedBandwidth [protected]

card64 Coral::AbstractQoSDescription::MinWantedBandwidth [protected]

cardinal Coral::AbstractQoSDescription::PktHeaderSize [protected]

cardinal Coral::AbstractQoSDescription::PktMaxSize [protected]

card64 Coral::AbstractQoSDescription::Position [protected]

Reimplemented in Coral::TraceQoSDescription.

int8 Coral::AbstractQoSDescription::SessionPriority [protected]

int8 Coral::AbstractQoSDescription::StreamPriority [protected]

double Coral::AbstractQoSDescription::WantedUtilization [protected]

The documentation for this class was generated from the following files:
