Coral::TimedThread Class Reference

Timed Thread. More...

#include <timedthread.h>

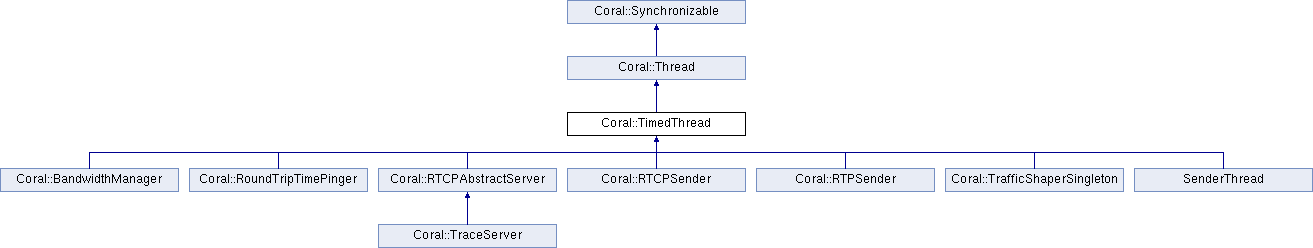

Inheritance diagram for Coral::TimedThread:

List of all members.

Public Member Functions
	TimedThread (const card64 usec, const cardinal flags=ThreadCancelAsynchronous)
	~TimedThread ()
card64	getInterval () const
void	setInterval (const card64 usec)
cardinal	getTimerCorrection () const
void	setTimerCorrection (const cardinal maxCorrection=0)
void	leaveCorrectionLoop ()
void	setFastStart (const bool on)
bool	getFastStart () const
void	stop ()
bool	pendingTimerEvent () const
Protected Member Functions
virtual void	timerEvent ()=0
Private Member Functions
void	run ()
Private Attributes
card64	Interval
cardinal	TimerCorrection
bool	AlarmHandlerInitialized
bool	FastStart
bool	NewInterval
bool	LeaveCorrectionLoop

---

Detailed Description

Timed Thread.

This abstract class realizes a timed thread based on Thread. The user of this class has to implement timerEvent(). Inaccurate system timers are corrected by calling user's timerEvent() implementation multiple times if necessary. This feature can be modified by setTimerCorrection (Default is on at a maximum of 10 calls). IMPORTANT: Do *not* use Thread methods within async signal handlers. This may cause deadlocks. See PThread's pthread_mutex_lock man-page, section "Async Signal Safety" for more information!

Author:

Thomas Dreibholz

Version:

1.0

See also:

Thread

---

Constructor & Destructor Documentation

Coral::TimedThread::TimedThread	(	const card64	usec,
		const cardinal	flags = ThreadCancelAsynchronous
	)

Constructor. A new timed thread with a given interval will be created but *not* started! To start the new thread, call start(). The interval gives the time for the interval in microseconds, the virtual function timerEvent() is called. The default timer correction is set to 10. See setTimerCorrection() for more information on timer correction. The first call of timerEvent() will be made immediately, if the fast start option is set (default). Otherwise it will be made after the given interval.

Parameters:

usec	Interval in microseconds.
flags	Thread flags

See also:

Thread::start

timerEvent

Thread::Thread

setTimerCorrection

setFastStart

Coral::TimedThread::~TimedThread

(

)

Destructor.

---

Member Function Documentation

bool Coral::TimedThread::getFastStart

(

)

const [inline]

Get fast start option: If false, the first call of timerEvent() will be made *after* the given interval; otherwise it will be made immediately.

Returns:

true, if option is set; false otherwise.

card64 Coral::TimedThread::getInterval

(

)

const [inline]

Get timed thread's interval.

Returns:

Interval in microseconds.

cardinal Coral::TimedThread::getTimerCorrection

(

)

const [inline]

Get maxCorrection value for inaccurate system timer.

Returns:

true, if activated; false if not.

See also:

setTimerCorrection

void Coral::TimedThread::leaveCorrectionLoop

(

)

[inline]

Leave timer correction loop: If the thread is in a timer correction loop, the loop will be finished after the current timerEvent() call returns.

bool Coral::TimedThread::pendingTimerEvent

(

)

const [inline]

Check for pending timer event(). This can be used to check for a pending timer event() (SIGALRM signal) within the current timerEvent() run.

void Coral::TimedThread::run

(

)

[private, virtual]

The virtual run() method, which contains the thread's implementation. It has to be implemented by classes, which inherit Thread.

Implements Coral::Thread.

void Coral::TimedThread::setFastStart

(

const bool

on

)

[inline]

Set fast start option: If false, the first call of timerEvent() will be made *after* the given interval; otherwise it will be made immediately. The default is true.

Parameters:

on	true, to set option; false otherwise.

void Coral::TimedThread::setInterval

(

const card64

usec

)

Set timed thread's interval.

Parameters:

usec	Interval in microseconds.

void Coral::TimedThread::setTimerCorrection

(

const cardinal

maxCorrection = 0

)

[inline]

Set correction of inaccurate system timer to given value. This on will cause the timerEvent() function to be called a maximum of maxCorrection times, if the total number of calls is lower than the calculated number of times the function should have been called. If the number of correction calls is higher than maxCorrection, *no* correction will be done! Default is 0, which turns correction off.

Parameters:

of	true to activate correction; false to deactivate.

void Coral::TimedThread::stop

(

)

[virtual]

Reimplementation of stop().

Reimplemented from Coral::Thread.

Reimplemented in Coral::RTCPAbstractServer.

virtual void Coral::TimedThread::timerEvent

(

)

[protected, pure virtual]

The virtual timerEvent() method, which contains the timed thread's implementation. It has to be implemented by classes, which inherit TimedThread. This method is called regularly with the given interval.

Implemented in Coral::BandwidthManager, Coral::RTPSender, Coral::RTCPAbstractServer, Coral::RoundTripTimePinger, Coral::RTCPSender, Coral::TrafficShaperSingleton, and SenderThread.

---

Member Data Documentation

bool Coral::TimedThread::AlarmHandlerInitialized [private]

bool Coral::TimedThread::FastStart [private]

card64 Coral::TimedThread::Interval [private]

bool Coral::TimedThread::LeaveCorrectionLoop [private]

bool Coral::TimedThread::NewInterval [private]

cardinal Coral::TimedThread::TimerCorrection [private]

---

The documentation for this class was generated from the following files:

• timedthread.h
• timedthread.cc
