MultiTimerThread< Timers > Class Template Reference

Multi Timer Thread. More...

#include <multitimerthread.h>

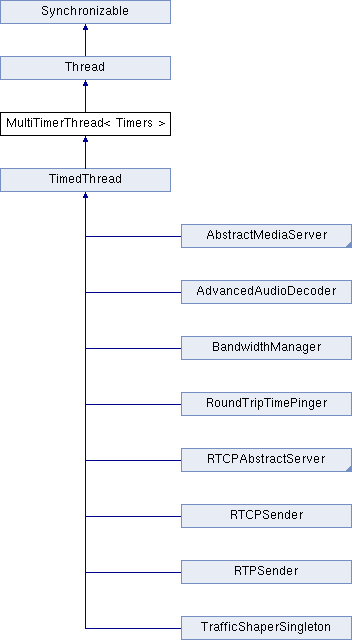

Inheritance diagram for MultiTimerThread< Timers >:

List of all members.

Classes
struct	TimerParameters
Public Member Functions
	MultiTimerThread (const char *name="MultiTimerThread", const cardinal flags=TF_CancelDeferred)
	~MultiTimerThread ()
card64	getInterval (const cardinal timer)
void	setInterval (const cardinal timer, const card64 usec, const card64 callLimit=0)
void	setNextAction (const cardinal timer, const card64 usec=0, const card64 callLimit=1)
void	setNextActionAbs (const cardinal timer, const card64 timeStamp=0, const card64 callLimit=1)
cardinal	getTimerCorrection (const cardinal timer)
void	setTimerCorrection (const cardinal timer, const cardinal maxCorrection=0)
void	leaveCorrectionLoop (const cardinal timer)
void	setFastStart (const cardinal timer, const bool on)
bool	getFastStart (const cardinal timer) const
void	cancel ()
void *	stop ()
Protected Member Functions
virtual void	timerEvent (const cardinal timer)=0
Private Member Functions
void	run ()
bool	isShuttingDown ()
Private Attributes
TimerParameters	Parameters [Timers]
bool	ParametersUpdated
bool	Shutdown
bool	LeaveCorrectionLoop [Timers]
Static Private Attributes
static const card64	UpdateResolution = 100000

---

Detailed Description

template<const cardinal Timers>
class MultiTimerThread< Timers >

Multi Timer Thread.

This abstract class realizes a timer thread with multiple timers, based on Thread. The user of this class has to implement timerEvent(). Inaccurate system timers are corrected by calling user's timerEvent() implementation multiple times if necessary. This feature can be modified by setTimerCorrection (Default is on at a maximum of 10 calls).

Author:

Thomas Dreibholz

Version:

1.0

See also:

Thread

---

Constructor & Destructor Documentation

template<const cardinal Timers>

MultiTimerThread< Timers >::MultiTimerThread	(	const char *	name = "MultiTimerThread< Timers >",
		const cardinal	flags = TF_CancelDeferred
	)

Constructor. A new multitimer thread with a given interval will be created but *not* started! To start the new thread, call start(). The interval gives the time for the interval in microseconds, the virtual function timerEvent() is called. The default timer correction is set to 10. See setTimerCorrection() for more information on timer correction. The first call of timerEvent() will be made immediately, if the fast start option is set (default). Otherwise it will be made after the given interval.

Parameters:

usec	Interval in microseconds.
name	Thread name.
flags	Thread flags.

See also:

Thread::start

timerEvent

Thread::Thread

setTimerCorrection

setFastStart

template<const cardinal Timers>

MultiTimerThread< Timers >::~MultiTimerThread

(

)

Destructor.

---

Member Function Documentation

template<const cardinal Timers>

void MultiTimerThread< Timers >::cancel

(

)

[virtual]

Reimplementation of Thread's cancel() method.

See also:

Thread::cancel

Reimplemented from Thread.

template<const cardinal Timers>

bool MultiTimerThread< Timers >::getFastStart

(

const cardinal

timer

)

const [inline]

Get fast start option: If false, the first call of timerEvent() will be made *after* the given interval; otherwise it will be made immediately.

Parameters:

timer

Timer number.

Returns:

true, if option is set; false otherwise.

template<const cardinal Timers>

card64 MultiTimerThread< Timers >::getInterval

(

const cardinal

timer

)

[inline]

Get timer interval.

Parameters:

timer

Timer number.

Returns:

Interval in microseconds.

template<const cardinal Timers>

cardinal MultiTimerThread< Timers >::getTimerCorrection

(

const cardinal

timer

)

[inline]

Get maximum correction value for inaccurate system timer.

Parameters:

timer

Timer number.

Returns:

true, if activated; false if not.

See also:

setTimerCorrection

template<const cardinal Timers>

bool MultiTimerThread< Timers >::isShuttingDown

(

)

[inline, private]

template<const cardinal Timers>

void MultiTimerThread< Timers >::leaveCorrectionLoop

(

const cardinal

timer

)

[inline]

Leave timer correction loop: If the thread is in a timer correction loop, the loop will be finished after the current timerEvent() call returns.

Parameters:

timer

Timer number.

template<const cardinal Timers>

void MultiTimerThread< Timers >::run

(

)

[private, virtual]

The virtual run() method, which contains the thread's implementation. It has to be implemented by classes, which inherit Thread.

Implements Thread.

template<const cardinal Timers>

void MultiTimerThread< Timers >::setFastStart	(	const cardinal	timer,
		const bool	on
	)		[inline]

Set fast start option: If false, the first call of timerEvent() will be made *after* the given interval; otherwise it will be made immediately. The default is true.

Parameters:

timer	Timer number.
on	true, to set option; false otherwise.

template<const cardinal Timers>

void MultiTimerThread< Timers >::setInterval	(	const cardinal	timer,
		const card64	usec,
		const card64	callLimit = 0
	)		[inline]

Set timer interval. Note, that the first timerEvent() call will be immediately, is FastStart mode is set, see also setFastStart(). For single shot timers, you probably have to call setFastStart(nr,0) first!

Parameters:

timer	Timer number.
usec	Interval in microseconds (0 to deactivate timer).
callLimit	Call count limit (0 for infinite).

See also:

setFastStart

template<const cardinal Timers>

void MultiTimerThread< Timers >::setNextAction	(	const cardinal	timer,
		const card64	usec = 0,
		const card64	callLimit = 1
	)		[inline]

Like setInterval(), but disabling FastStart first. This method can be used e.g. for single shot timers.

Parameters:

timer	Timer number.
usec	Time to next invokation (0 = immediately).
callLimit	Call count limit (0 for infinite, default: 1).

See also:

setInterval

template<const cardinal Timers>

void MultiTimerThread< Timers >::setNextActionAbs	(	const cardinal	timer,
		const card64	timeStamp = 0,
		const card64	callLimit = 1
	)		[inline]

Like setNextAction(), but the time stamp of the next invokation is given as absolute time (microseconds since January 01, 1970).

Parameters:

timer	Timer number.
usec	Time to next invokation (0 = immediately).
callLimit	Call count limit (0 for infinite, default: 1).

See also:

setInterval

setNextAction

template<const cardinal Timers>

void MultiTimerThread< Timers >::setTimerCorrection	(	const cardinal	timer,
		const cardinal	maxCorrection = 0
	)		[inline]

Set correction of inaccurate system timer to given value. This on will cause the timerEvent() function to be called a maximum of maxCorrection times, if the total number of calls is lower than the calculated number of times the function should have been called. If the number of correction calls is higher than maxCorrection, *no* correction will be done! Default is 0, which turns correction off.

Parameters:

timer	Timer number.
of	true to activate correction; false to deactivate.

template<const cardinal Timers>

void* MultiTimerThread< Timers >::stop

(

)

[virtual]

Reimplementation of Thread's stop() method.

See also:

Thread::stop

Reimplemented from Thread.

Reimplemented in AbstractMediaServer, and RTCPAbstractServer.

template<const cardinal Timers>

virtual void MultiTimerThread< Timers >::timerEvent

(

const cardinal

timer

)

[protected, pure virtual]

The virtual timerEvent() method, which contains the multitimer thread's implementation. It has to be implemented by classes, which inherit MultiTimerThread. This method is called regularly with the given interval.

Implemented in TimedThread.

---

Member Data Documentation

template<const cardinal Timers>

bool MultiTimerThread< Timers >::LeaveCorrectionLoop[Timers] [private]

template<const cardinal Timers>

TimerParameters MultiTimerThread< Timers >::Parameters[Timers] [private]

template<const cardinal Timers>

bool MultiTimerThread< Timers >::ParametersUpdated [private]

template<const cardinal Timers>

bool MultiTimerThread< Timers >::Shutdown [private]

template<const cardinal Timers>

const card64 MultiTimerThread< Timers >::UpdateResolution = 100000 [static, private]

---

The documentation for this class was generated from the following file:

• multitimerthread.h
